Rubber Bellows & Expansion Joints for Industrial Piping
Intermech supplies Armflex rubber bellows and rubber expansion joints for industrial piping applications across South Africa.
Designed to absorb vibration, accommodate movement and support sealing between flanged connections, Armflex rubber bellows are suitable for maintenance, replacement and new installation requirements where pressure, temperature, media, movement and flange conditions must be considered.
Send us your pipe size, flange details, pressure, temperature, media and movement requirements for practical product guidance and quotation support.
↓Product Overview
Armflex Rubber Bellows for Movement, Vibration & Flexible Joint Sealing
Armflex rubber bellows, also referred to as rubber expansion joints or rubber compensators, are flexible components used in industrial piping systems to absorb vibration, accommodate movement and support flexible flanged connections.
Product suitability depends on the application and operating conditions. Pipe size, pressure, temperature, process media, movement requirements and flange configuration should all be considered before specifying or replacing a rubber bellow.
Armflex Rubber Bellows from Intermech
Armflex is Intermech’s flagship rubber bellow range, supported by product guidance and quotation assistance for demanding industrial piping applications.
Key Product Features
- Absorbs mechanical and acoustic vibration through connected pipework.
- Accommodates controlled movement within suitable piping applications.
- Supports minor alignment variation at connected end points.
- Provides flexible sealing between flanged connections.
- Provides electrical discontinuity between connected pipe sections.
- Suitable material options are available for heat, water, weather and demanding atmospheric conditions.
Controlled Movement
Movement Capabilities for Industrial Piping Systems
Armflex rubber bellows can accommodate different forms of controlled movement within the allowable limits of the selected bellow size and configuration.

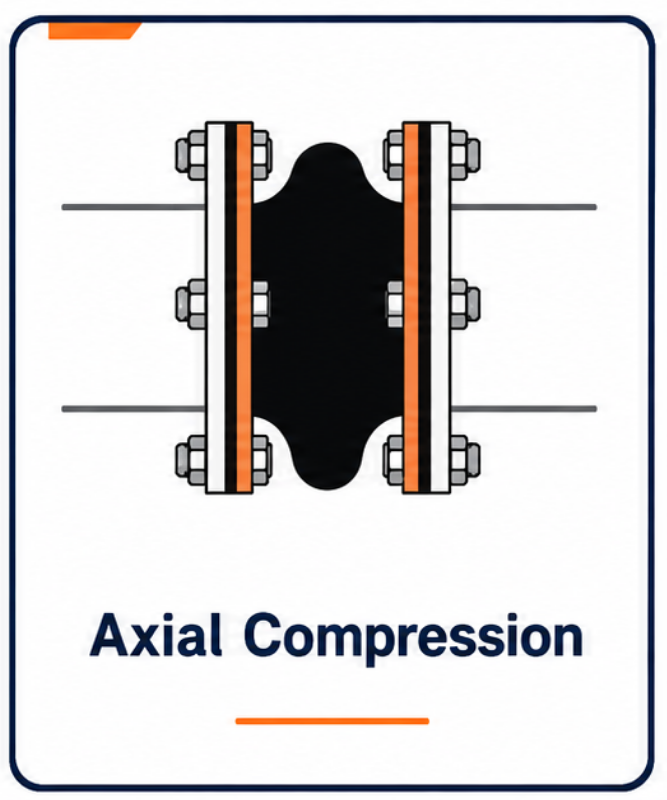

Axial Compression
Accommodates controlled shortening of the rubber bellow along the pipe axis.

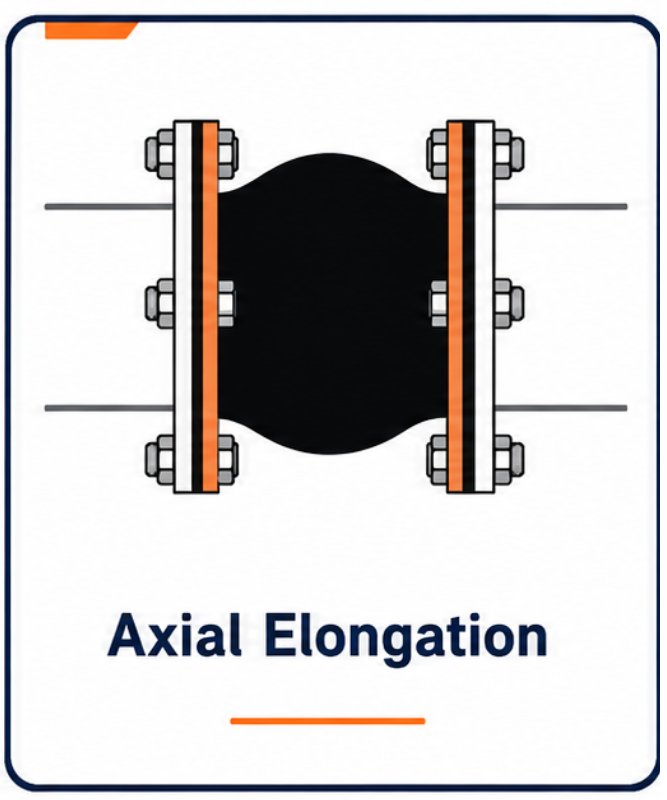

Axial Elongation
Accommodates controlled extension of the rubber bellow along the pipe axis.

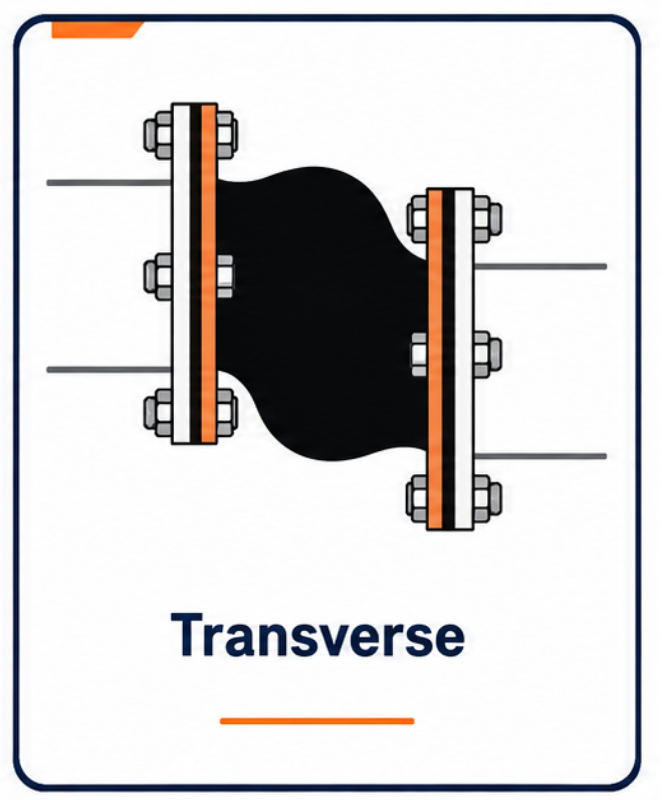

Transverse Movement
Accommodates controlled lateral movement across the pipe axis within the allowable movement range.

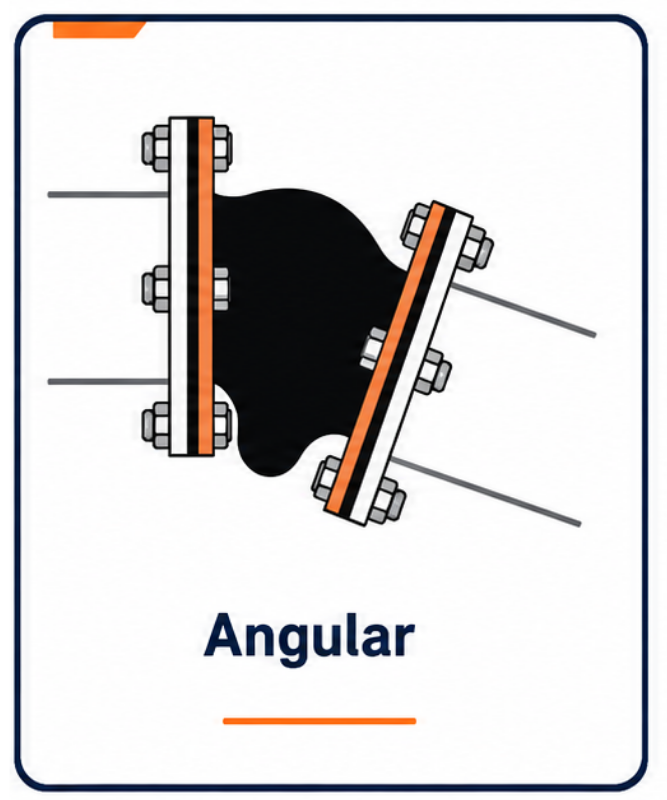

Angular Movement
Allows controlled angular movement between connected pipe sections within the specified product limits.
Technical Range
Armflex Rubber Bellow Sizes & Selection Data

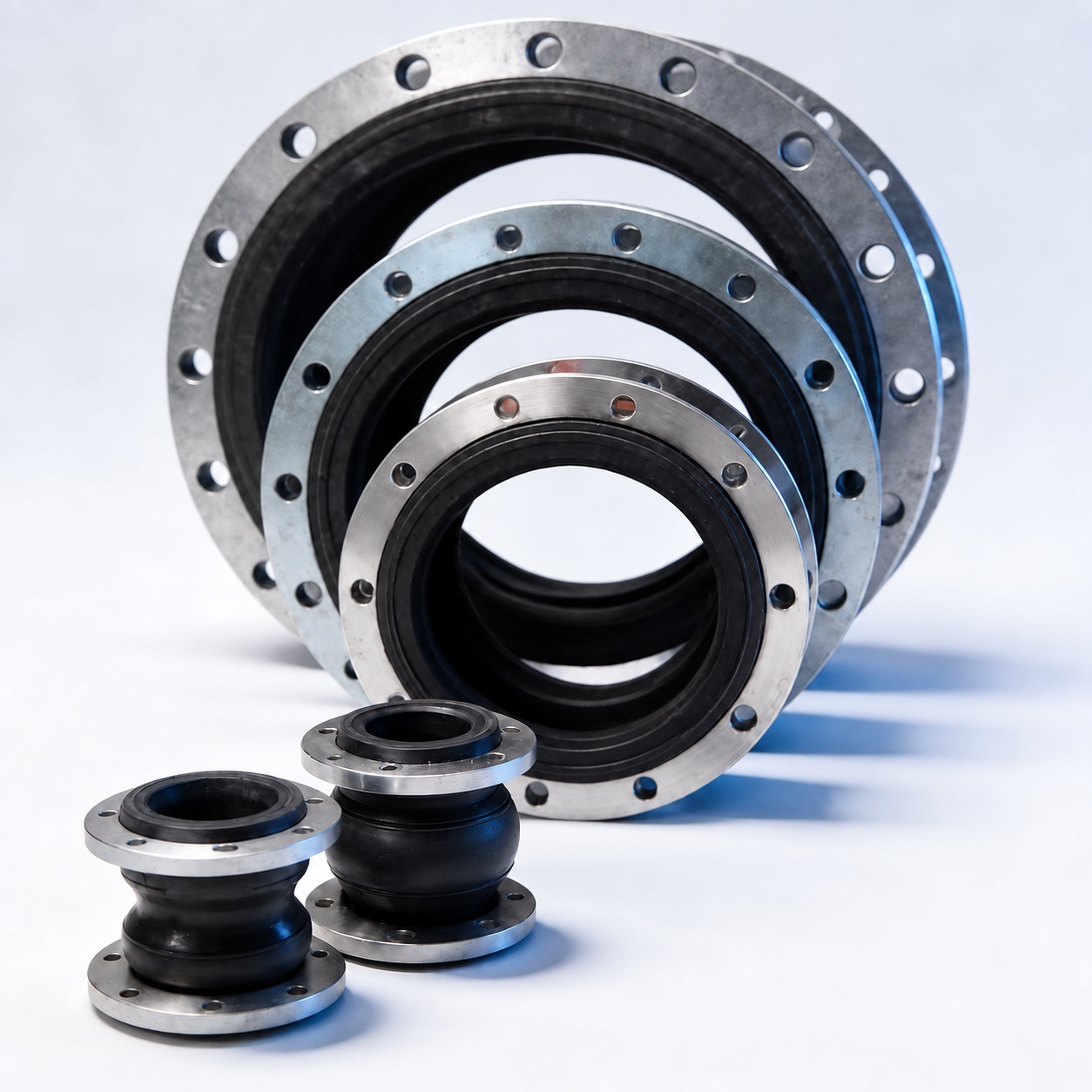

Armflex rubber bellows are available across a range of nominal pipe sizes, with dimensional and allowable movement requirements determined by the selected bellow size and application conditions.
Selection should consider:
- Nominal pipe diameter
- Bellow length requirements
- Operating pressure
- Operating temperature
- Axial movement
- Transverse movement
- Angular deflection
- Flange requirements
Typical Applications
Rubber Bellows for Industrial Piping & Plant Applications
Armflex rubber bellows are used in piping systems where vibration, movement and flexible connection requirements need to be managed. Suitability should always be confirmed against the actual operating and installation conditions.
Industrial Piping Systems
Flexible connections for industrial pipework where vibration, movement or installation conditions need to be accommodated.
Pumps, Compressors & Blowers
Suitable for selected connected equipment applications where vibration transfer and flexible piping connections must be managed.
HVAC & Air-Conditioning Systems
Used in selected piping systems where vibration and movement compensation requirements need to be considered.
Marine Piping Systems
Flexible bellow options for selected marine piping applications, subject to the required operating and connection conditions.
Sanitary Systems
Suitable for selected sanitary piping requirements where the correct material, pressure and operating conditions are confirmed.
Thermal Movement Applications
Supports piping systems where thermal displacement, vibration or controlled movement needs to be accommodated.
Product Construction
How Armflex Rubber Bellows Are Constructed
Armflex rubber bellows use a reinforced flexible construction designed for industrial piping applications where movement, vibration and flexible flange connections need to be managed.

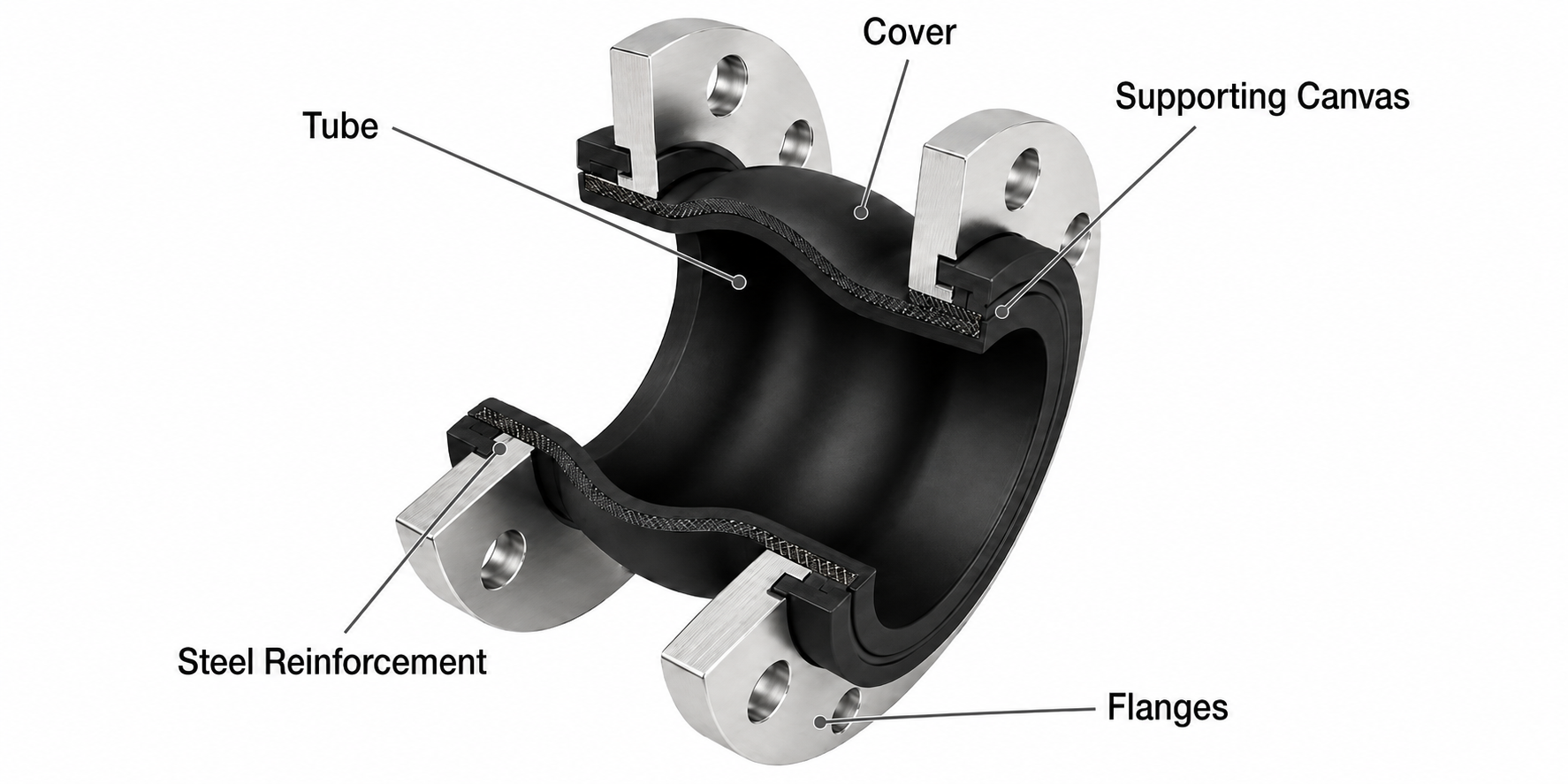

The cutaway diagram shows the principal construction components used in the Armflex rubber bellow design, including the tube, cover, supporting canvas, steel reinforcement and flanges.
Armflex rubber bellow construction for industrial piping applications
Selecting the Right Armflex Rubber Bellow
Selecting the correct rubber bellow for an industrial piping application depends on the actual operating conditions, pipework layout and installation requirements.
Pipe size, pressure, temperature, process media, required movement and flange configuration should all be considered before a rubber expansion joint is specified or supplied.
Intermech supports maintenance, engineering and procurement teams across South Africa with practical Armflex product guidance for replacement, planned maintenance and new installation requirements.
What to Send for a Faster, More Accurate Quote
Provide as much of the following information as is available.

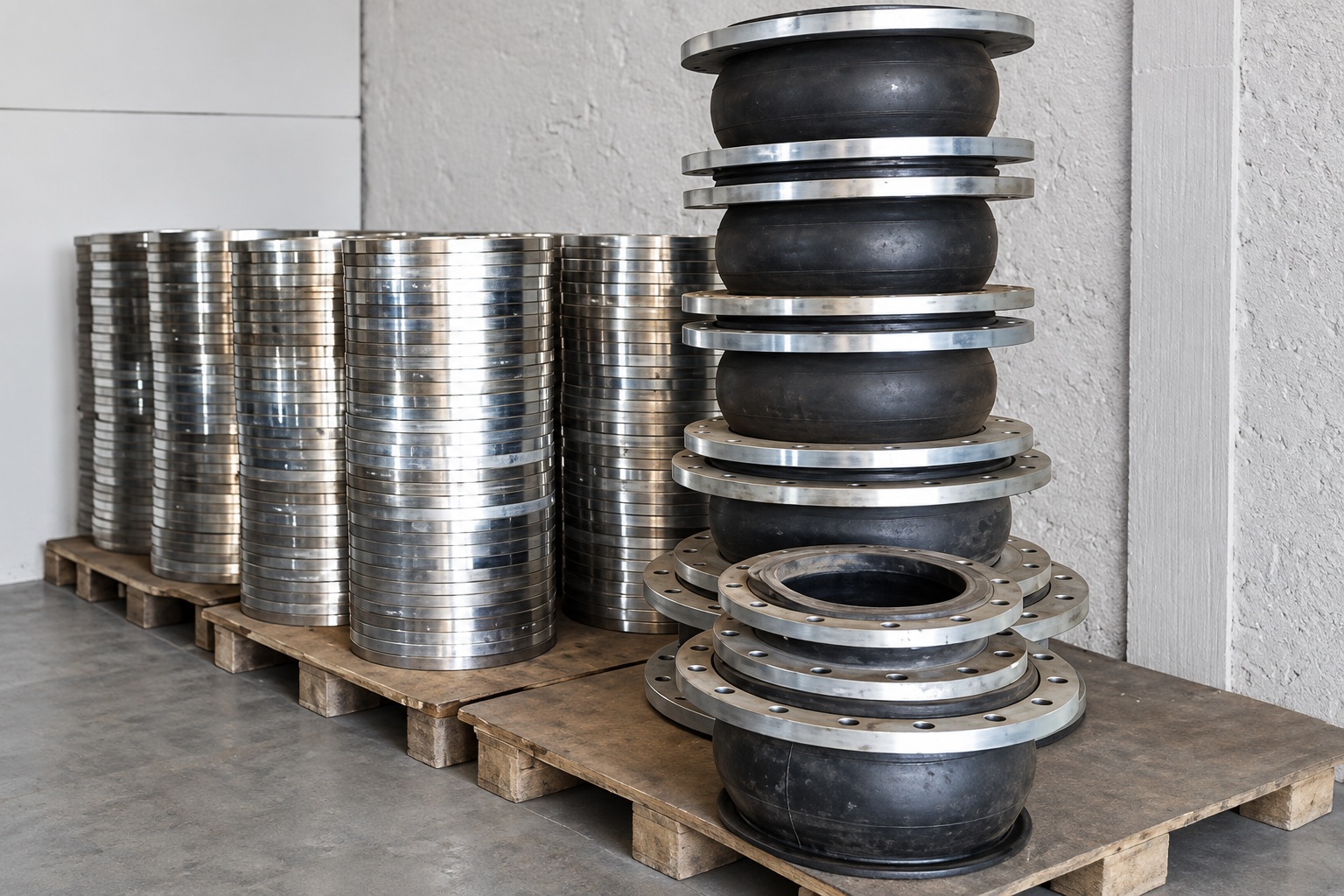

Armflex rubber bellows and flanged components at Intermech, Springs, Gauteng, South Africa
Practical Armflex Rubber Bellow Supply & Support
Intermech supplies Armflex rubber bellows for industrial piping, maintenance and replacement requirements across South Africa.
From its Springs, Gauteng base, Intermech supports maintenance, engineering and procurement teams with practical product guidance for planned maintenance, replacement and new installation requirements.
Product guidance is based on the actual application details supplied, including pipe size, pressure, temperature, process media, movement requirements and flange configuration.
Intermech Support Includes
- Armflex rubber bellow product focus
- Application-led product guidance
- Maintenance and replacement support
- Premium and cost-effective product options
- Quotation support for industrial clients
- Support for demanding plant and piping applications
Graftec Industrial Gaskets
Graftec gaskets support flange, vessel and process sealing applications where media, pressure, temperature and flange conditions must be considered when selecting the correct gasket.
Slade Gland Packing
Premium Slade gland packing supports selected pump and valve applications where leakage control, equipment condition, process media and operating requirements must be considered.
Need Help Selecting the Right Armflex Rubber Bellow?
Send Intermech your application details, pipe size, flange requirements, operating pressure, temperature, process media and movement requirements for practical product guidance and quotation support.
